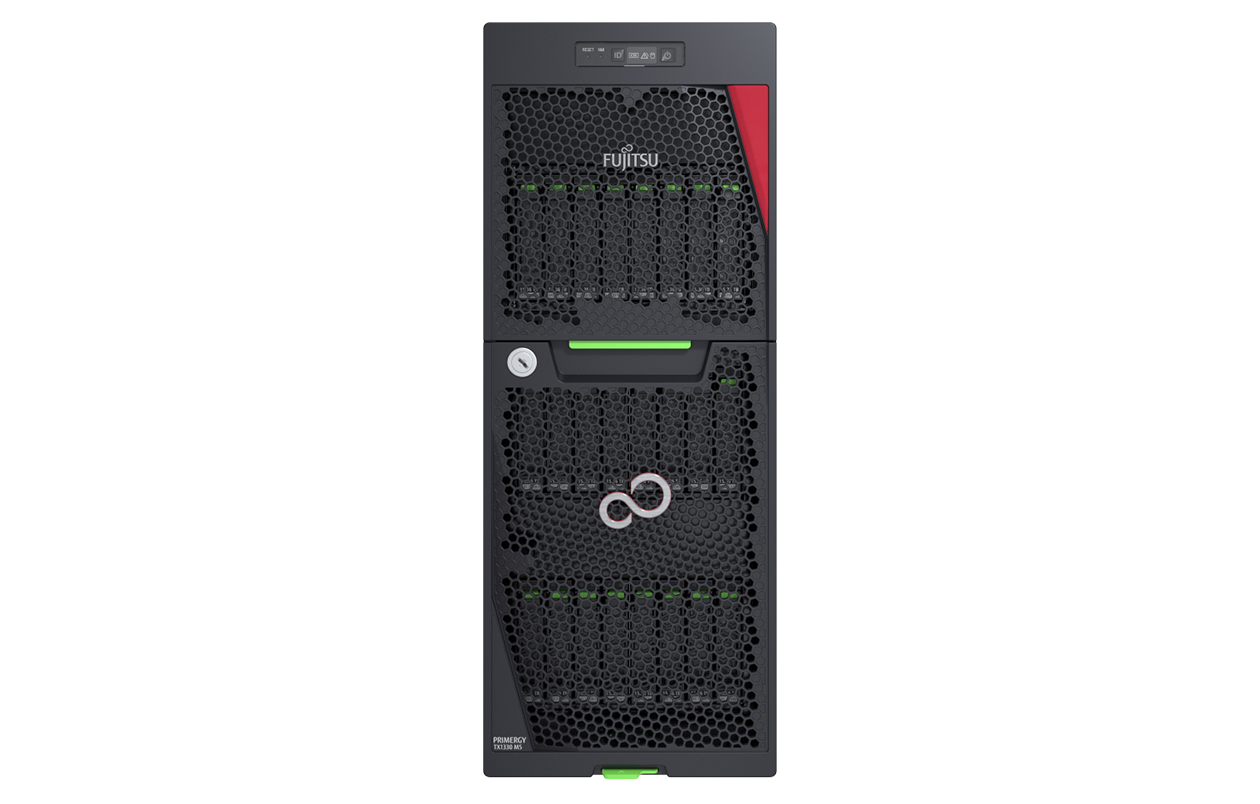

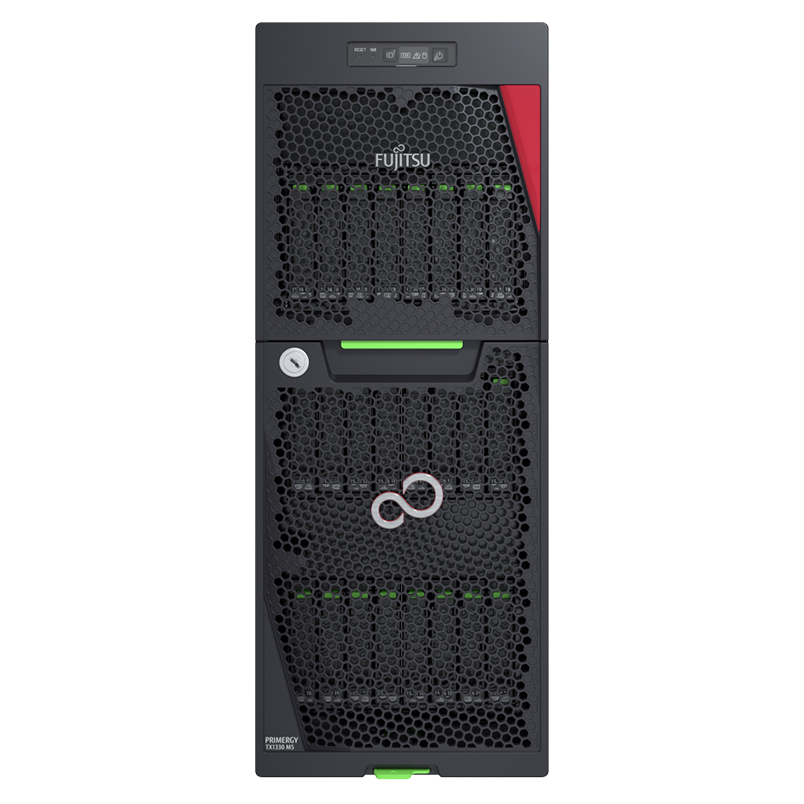

Fujitsu PRIMERGY TX1330 M5 Server
 |
 |
 |
 |
HIGHLY EXPANDABLE AND PERFORMANCE ORIENTED |
|
|
|
|
Powerful compute and memory for excellent performance across both individual and virtualized, standard business workloads. Furthermore, the design is ideal for securely managing large datasets with its substantial storage (24x 2.5-inch, or 12x 3.5-inch devices) advanced RAID, dual Gigabit LAN (plus advanced options) and security features (3-way lock, TPM 2.0). |
Grow with the business with 4x PCIe Gen4/3 slots (2x Gen4) for upgrades (RAID, networking and graphics) while a rack upgrade kit enables scale-out deployment. M.2, dual MicroSD devices enable effective software boot, while new high data-rate USB 3.2 Gen2 USB ports enhance connectivity. |
New high efficiency, redundant power supplies offer enhanced reliability and lower energy expenditure despite heavy usage scenarios. Cool-safe ® Advanced Thermal Design technology allows for an expanded range of operation and reduced noise, enabling deployment in public areas. |
The iRMC S6 and Fujitsu Infrastructure Manager (ISM) suite enable efficient and simplified server and infrastructure management, boosting IT administrator productivity. The design also has hot-plug components and quick access of critical components to enable easy serviceability. |
Product Video
Tech Specs
| Chipset | Intel® C256 |
| Mainboard type | D3931 |
| Processor | Intel® Xeon® E-2300 processor family, Intel® Pentium® processor |
| Memory | 8 GB - 128 GB, UDIMM (DDR4) |
| Memory slots | 4 |
| Memory protection | ECC |
| Drives (optional) | LTO7HH Ultrium, 300 MB/s DVD-ROM, half height, SATA I DVD Super Multi, half height, SATA I DVD supermulti, ultraslim, SATA I Blu-ray Disc™ Triple Writer, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s |
| PCI-Express 3.0 x4 | 2 x Full height |
| PCI-Express 4.0 x8 | 2 x Full height (2x PCIe 4.0 x8 slots can be switched to 1x PCIe 4.0 x16) |
| Accessible drive bays | 3 x 5.25/1.6-inch Accessible drive bays are not available in case of max. storage drive configuration 3 x 5.25/1.6-inch for 1 x backup drive + 1 x ODD |
| Optional accessible drives | all possible options described in relevant system configurator |
| Storage drive bays | 3.5-inch or 2.5-inch hot-plug SAS/SATA or 2.5-inch NVMe drives Max. 12x 3.5-inch or 24x 2.5-inch Max. 4x 3.5-inch or 8x 2.5-inch |
| LAN Controller | Intel® i210 onboard 2 x 1 Gbit/s Ethernet (RJ45) |
| USB ports | 6 (Front: 1x USB 3.2 Gen2x2(20 Gbps) Type C, 1x USB 3.2 Gen1x1(5 Gbps) / Rear:, 2x USB 3.2 Gen2x1(10 Gbps) / Internal: 2x USB 3.2 Gen1x1(5 Gbps)) |
| Graphics | 2 (1x Display Port (Integrated processor graphics) / 1x VGA (15-pin) / can be used exclusively) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port |
| Trusted Platform Module (TPM) | TPM 2.0 module (option) |
| Power supply configuration | 1 x standard, 1 x hot-plug, 2 x hot-plug redundant (depending on Model) |
| Active power (max. configuration) | 1,088 W |
| Weight | up to 26.4 kg |
| Rack (W x D x H) | 482.6 x 495.3 x 174.7 mm |
| Floor-stand (W x D x H) | 177.2 x 521.7 x 456.2 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Warranty period | 1 year |
| Warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | http://www.fujitsu.com/fts/products/product-support-services/ |
| Service Weblink | http://www.fujitsu.com/fts/products/product-support-services/ |
| Recommended Service | 24x7 Onsite Service with 4h Onsite Response Time |
