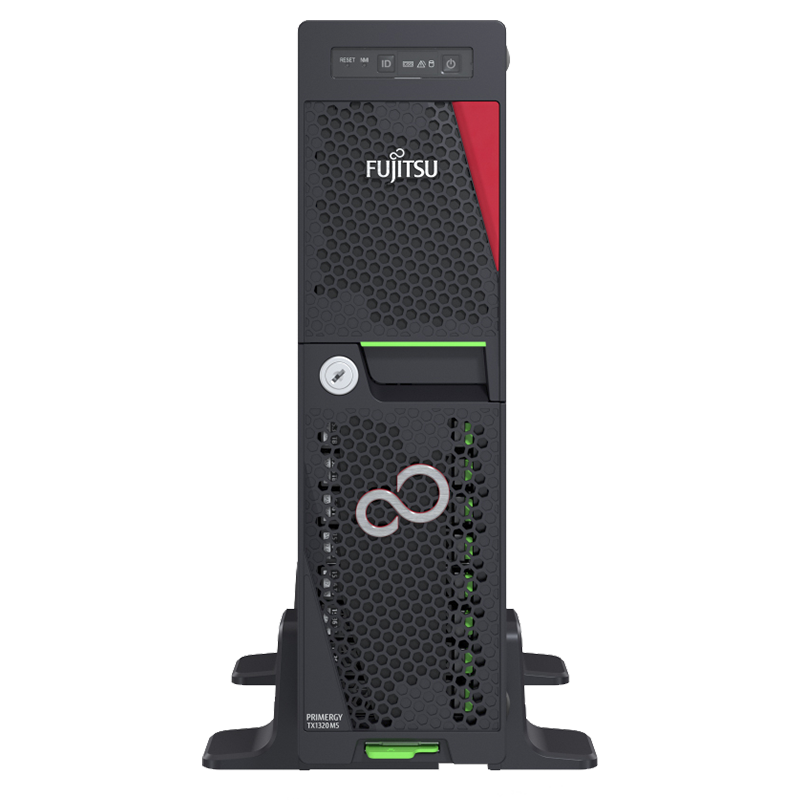

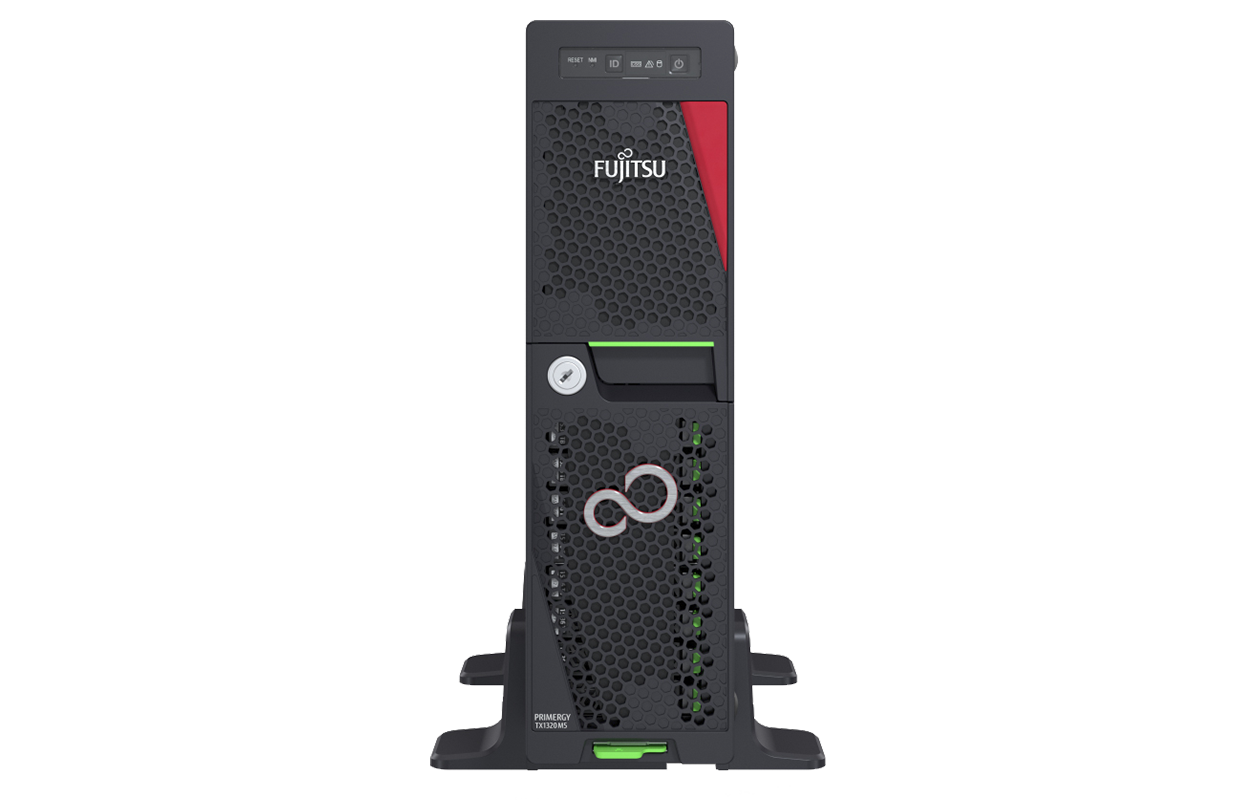

Fujitsu PRIMERGY TX1320 M5 Server
 |
 |
 |
 |
ADVANCED TECHNOLOGY TO DRIVE WORKLOADS |
|
|
|
|
Powerful mono-socket compute and memory accelerate performance across both individual and virtualized business and industry workloads. Full-featured base units (with 8x 2.5-inch or 2x 3.5-inch storage drives, dual Gigabit LAN standard) to meet diverse SME storage needs. |
Versatile 4x PCIe 4.0/3.0 slots (2x 4.0) to enable upgrades, with advanced options (RAID, networking, and graphics). Secure storage features protect data while M.2, dual microSD devices support flexible software boot and new high data rate USB ports enable the latest peripheral devices. |
Designed to be good for both the business and the environment. Choose from amongst a 3.5-inch drive base unit with a value-oriented standard power supply, or the 2.5-inch drive base units which offer either a standard power supply or dual, hot-plug 500W power supplies for enhanced reliability and with high energy-efficiency. |
Ultra-compact, low noise, easy to maintain, with Fujitsu’s Cool-safe® technology, and an optional dust-protection kit enabling wide-spread deployment. The server's iRMC S6 and Fujitsu Infrastructure Manager (ISM) software suite enable efficient server remote management and infrastructure control. |
Product Video
Tech Specs
| Chipset | Intel® C256 |
| Mainboard type | D3931 |
| Product Type | Mono Socket Tower Server |
| Processor | Intel® Xeon® E-2300 processor family, Intel® Pentium® processor |
| Memory | 8 GB - 128 GB, UDIMM (DDR4) |
| Memory slots | 4 |
| Memory protection | ECC |
| Drives (optional) | DVD supermulti, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 |
| PCI-Express 3.0 x4 | 2 x Low profile |
| PCI-Express 4.0 x8 | 2 x Low profile (2x PCIe 4.0 x8 slots can be switched to 1x PCIe 4.0 x16) |
| Accessible drive bays | 1 x 3.5/1.6-inch for backup devices, 1 x 5.25/9.5mm for DVD-RW/Blu-ray 1 x 3.5/1.6-inch for backup devices, 1 x 5.25/0.4-inch for CD-RW/DVD |
| Storage drive bays | 3.5-inch non hot-plug or 2.5-inch hot-plug SAS/SATA or 2.5-inch NVMe drives Max. 8x (4x + 4x) x 2.5-inch hot-plug Max. 2 x 3.5-inch non hot-plug SATA |
| LAN Controller | Intel® i210 onboard 2 x 1 Gbit/s Ethernet (RJ45) |
| USB ports | 6 (Front: 1x USB 3.2 Gen2x2(20 Gbps) Type C, 1x USB 3.2 Gen1x1(5 Gbps) / Rear:, 2x USB 3.2 Gen2x1(10 Gbps) / Internal: 2x USB 3.2 Gen1x1(5 Gbps)) |
| Graphics | 2 (1x Display Port (Integrated processor graphics) / 1x VGA (15-pin) / can be used exclusively) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port |
| Trusted Platform Module (TPM) | TPM 2.0 module (option) |
| Power supply configuration | 1 x standard, 1 x hot-plug, 2 x hot-plug redundant (depending on Model) |
| Active power (max. configuration) | 613 W |
| Weight | up to 11.1 kg |
| Floor-stand (W x D x H) | 98 x 400 x 340 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Warranty period | 1 year |
| Warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | http://www.fujitsu.com/fts/products/product-support-services/ |
| Service Weblink | http://www.fujitsu.com/fts/products/product-support-services/ |
| Recommended Service | 24x7 Onsite Service with 4h Onsite Response Tim |
