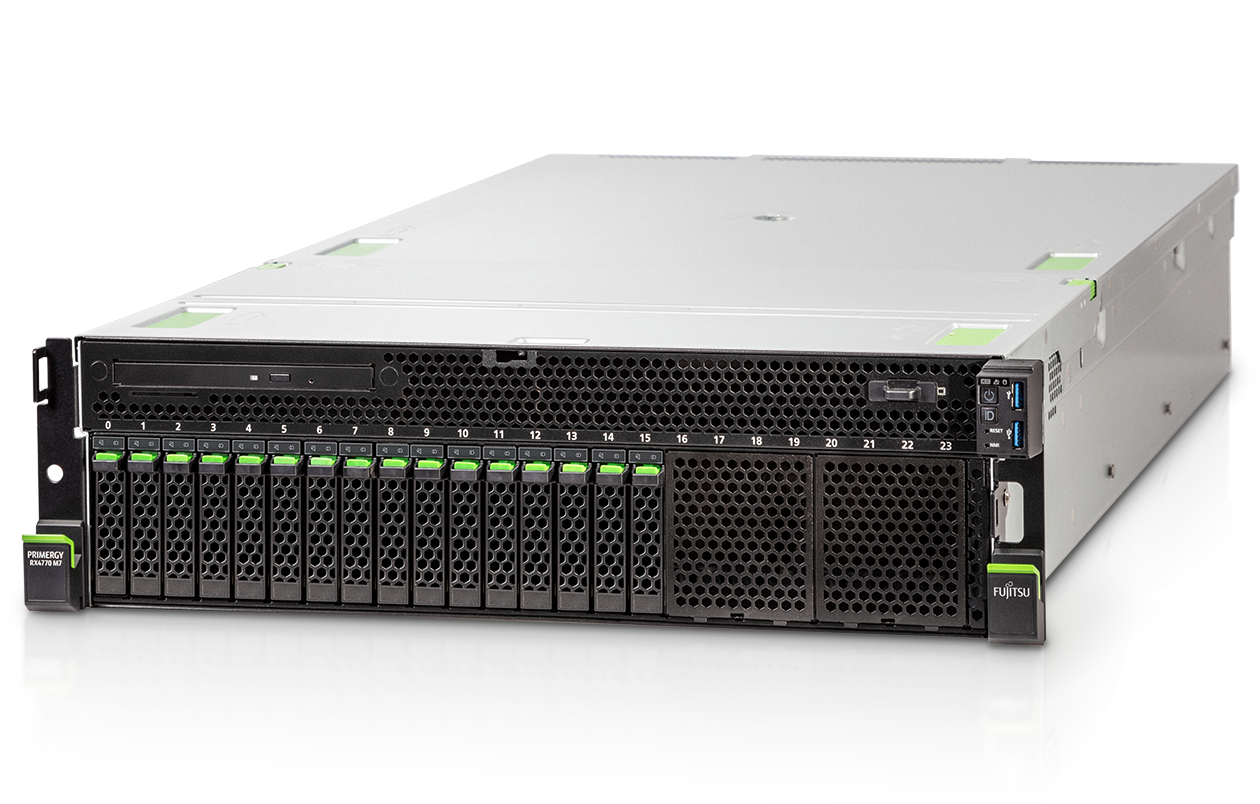

Fujitsu PRIMERGY RX4770 M7 Server
 |
 |
 |
 |
POWER YOUR BUSINESS-CRITICAL WORKLOADS |
SCALABLE APPLICATION PERFORMANCE |
FLEXIBLE EXPANDABILITY AND RELIABILITY |
SECURE AND RELIABLE |
|
PRIMERGY RX4770 M7 server provides 4 socket computing in a 3U form factor, accelerates business insights and delivers maximum performance per node with highest memory bandwidth and IO lanes for your most demanding applications. Moreover, a flexible processor tray allows to start with two CPU’s and scale to four processors in the future saving on upfront costs. |
Address large data sets with up to 64 DIMMs and up to 16 TB of memory. New DDR5 DIMM memory provide fast (up to 4800 MT/s), high capacity memory for memory intensive workloads such as AI and data analytics. |
The flexible drive cage design supports up to 24x 2.5” SAS/SATA/NVMe storage drives. Sufficient expandability for future requirements is guaranteed by PCIe 5.0 expansion slots for graphical processing units (GPUs) and all kinds of networking cards offering increased I/O bandwidth and to be able to cope with graphic-intensive applications. Choice of DynamicLoM adapters offers range of networking bandwidth (1GbE to 25GbE) to be able to adapt and grow to changing business needs. |
The integrated Platform Firmware Resilience (PFR) feature provides a platform root of trust and thus helps to protect platform firmware, detect corruptions, and restore back to a known-good state. |
Product Video
Tech Specs
| Chipset | Intel® C741 |
| Mainboard type | D3984 |
| Product Type | Quad Socket Rack Server |
| Processor | Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor 2 or 4 |
| Memory | 16 GB - 16 TB, DIMM (DDR5) |
| Memory slots | 64 (16 DIMMs per CPU, 8 channels with 2 slots per channel) |
| Memory protection | ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I |
| PCI-Express 4.0 x16 | 4 x Full height Refer to Slot Notes. |
| Optional accessible drives | 1 x 5.25/9.5mm for DVD-RW/Blu-ray All possible options described in relevant system configurator. |
| Storage drive bays | 2.5-inch hot-plug SAS/SATA/PCIe 2 x M.2 slots 8 x 2.5-inch hot-plug SAS/SATA/PCIe 24 x 2.5-inch hot-plug SAS/SATA/PCIe Optional expandable up to 16 storage drives |
| LAN Controller | Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28 |
| Remote Management | Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller), IPMI 2.0 compatible |
| USB ports | 5 x USB 3.1 Gen1(USB3.0) (2x front, 2x rear, 1x internal) |
| Graphics | 1 x VGA (1 x rear, 1 x front(Optional)) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s) |
| Trusted Platform Module (TPM) | Infineon / TPM 2.0 module, FIPS; TCG compliant (option) |
| Power supply configuration | 3 hot-plug power supplies (standard) |
| Active power (max. configuration) | 3,700 W |
| Weight | max. 40 kg |
| Rack (W x D x H) | 482.6 mm (Bezel) / 435 mm (Body) x 800 x 129.4 mm |
| Mounting Depth Rack | 830.6 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) |
| Server Management | ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Manufacturer warranty period | 3 years |
| Manufacturer warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Support Pack Options | Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner |
