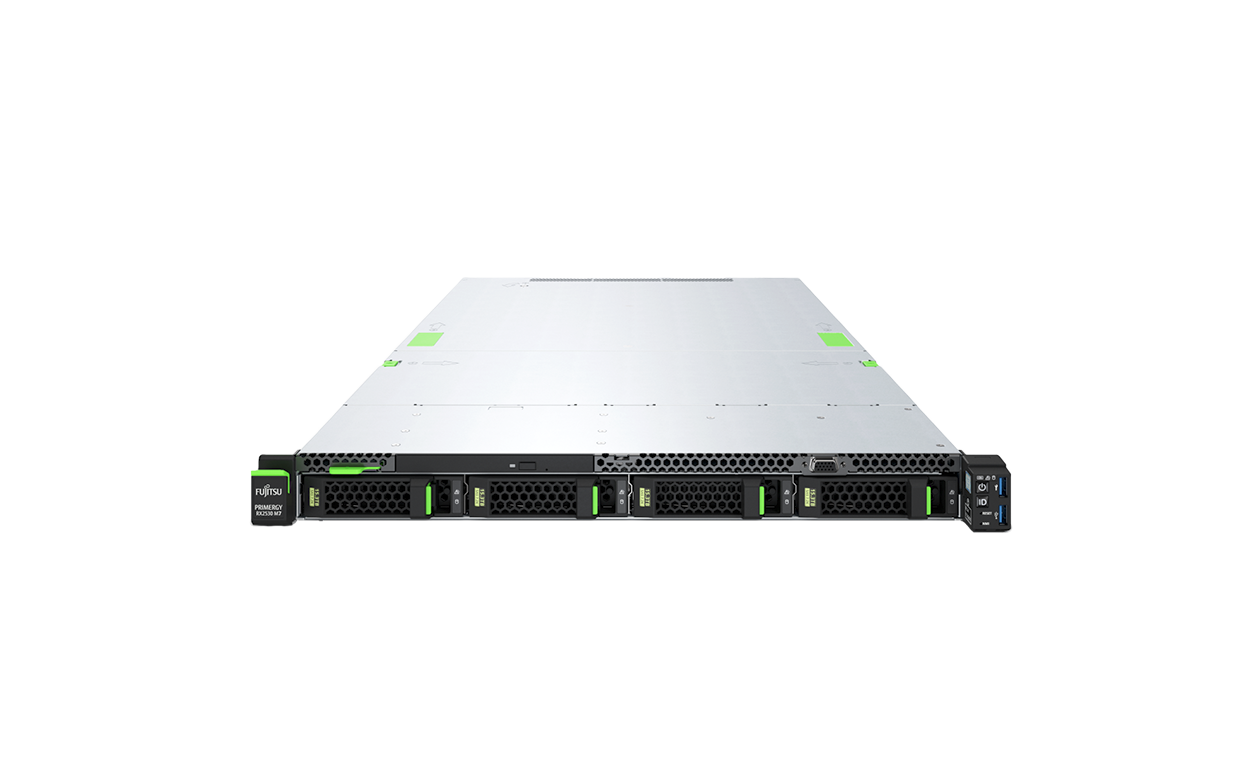

Fujitsu PRIMERGY RX2530 M7 Server
 |
 |
 |
 |
OPTIMIZED PERFORMANCE AND DENSITY |
POWER YOUR APPLICATIONS |
EASY EXPANDABILITY |
COMPREHENSIVE PROTECTION |
|
Ideal dual-socket platform for dense scale-out data center computing powered by latest 4th or 5th Generation Intel® Xeon® Scalable Processors with up to 60 / 64 cores per CPU. |
Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules and up to 8TB of memory. DDR5 DIMM memory provides fast, high capacity for memory intensive workloads. |
Benefit from the flexibility of 2.5”, 3.5” storage devices for highest capacities with up to 10 drives per height unit (U) and additional expandability with up to 3 PCIe 5.0 /1x PCIe 4.0 (for Internal RAID controller) slots flexible adapters via OCP v3. |
Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access. |
Product Video
Tech Specs
| Chipset | Intel® C741 |
| Mainboard type | D3982 |
| Product Type | Dual Socket Rack Server |
| Processor | Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor |
| Memory | 16 GB - 8 TB, DIMM (DDR5) |
| Memory slots | 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel) |
| Memory protection | ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I |
| PCI-Express 4.0 x16 | 1 x Low profile |
| Accessible drive bays | 1 x 5.25/9.5mm for DVD-RW/Blu-ray |
| Optional accessible drives | 2x 2.5-inch hot-plug SAS/SATA rear option Ultra slim 9.5mm optical drive (optional) n/a Not for 10x 2.5-inch base unit. All possible options described in relevant system configurator. |
| Storage drive bays | up to 4 x 3.5-inch, 8 x 2.5-inch, 10 x 2.5-inch base unit up to 8x 2.5" (SFF) hot plug drives (SAS/SATA) up to 4x 3.5" (LFF) hot plug drives (SAS/SATA) up to 10x 2.5" (SFF) hot plug drives (SAS/SATA) up to 10x 2.5" (SFF) hot plug drives (SAS/SATA/PCIe SSD) up to 10x 2.5" (SFF) hot plug drives (SATA/PCIe SSD) |
| LAN Controller | Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28 |
| Remote Management | Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller), IPMI 2.0 compatible |
| USB ports | 5 x USB 3.0 (2x front, 2x rear, 1x internal) |
| Graphics | 2 x VGA (thereof 1x front optional - not for base unit with 10x 2.5” devices) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s) |
| Trusted Platform Module (TPM) | Infineon / TPM 2.0 module; TCG compliant (option) |
| Power supply configuration | 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy |
| Active power (max. configuration) | 2,608 W |
| Weight | Std: max. 19.2 kg / Short depth: max. 16.6 kg |
| Rack (W x D x H) | 483 mm (Bezel) / 435 mm (Body) x 808 x 43 mm |
| Mounting Depth Rack | Std: 836.95 mm / Short depth: 756.95 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) |
| Server Management | ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Warranty period | 3 years |
| Warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Support Pack Options | Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner |
