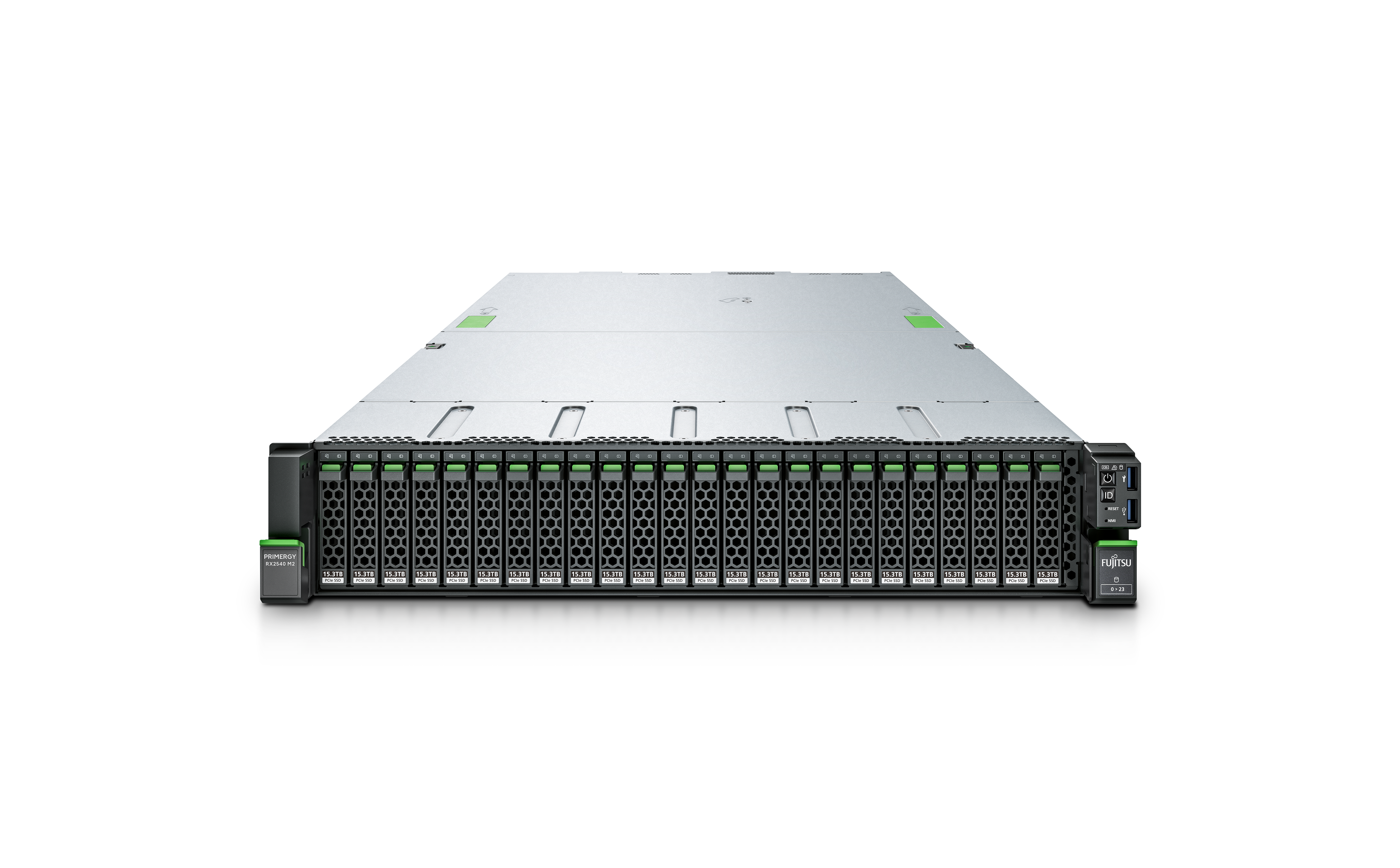

Fujitsu PRIMERGY RX2450 M2 Server
 |
 |
 |
 |
SECURE, HIGH PERFORMANCE COMPUTING |
EXPANDABILITY AND DENSITY |
AGILE INFRASTRUCTURE MANAGEMENT |
SECURITY |
|
The versatile PRIMERGY RX2450 M2 server with AMD EPYC™ 9004 / 9005 processors fastens time to value for IT organizations running demanding workloads. |
Agile and data-driven companies modern platforms that scale easily and are optimized for application performance. The PRIMERGY RX2450 M2 is built on the well known scalable system architecture and provides choice and flexibility to meet performance demands. |
As you scale your infrastructure, scale your profitability with Fujitsu Software Infrastructure Manager (ISM). ISM enables organizations to have centralized control over the infrastructure, which includes servers, storage, networking, cloud management software as well as power and cooling using a single user interface. |
Designed with security in mind, AMD EPYC™ 9004 or 9005 series processors help protect your CPU, applications, and data. With features such as AMD Secure Boot, there is an improved layer of security and firmware advanced persistent threats are mitigated. Platform Firmware Resilience (PFR) is provided by the PRIMERGY RX2450 M2. |
Product Video
Tech Specs
| Chipset | System on Chip (SoC) |
| Mainboard type | D4129 |
| Product Type | Dual Socket Rack Server |
| Processor | AMD EPYC™ 9004 series processor, AMD EPYC™ 9005 series processor 1 - 2 x AMD EPYC™ 9004 series processor |
| Memory | 16 GB - 6 TB, DIMM (DDR5) |
| Memory slots | 24 (12 DIMMs per CPU) |
| Memory protection | Advanced ECC |
| Drives (optional) | LTO7HH Ultrium, 300 MB/s DVD supermulti, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s |
| Accessible drive bays | 1 x 5.25/9.5mm for DVD-RW/Blu-ray 1 x 5.25/0.4-inch for CD-RW/DVD |
| Optional accessible drives | ODD 5.25" possible All possible options described in relevant system configurator. |
| Storage drive bays | up to 16x 2.5-inch, 24x 2.5-inch, 10x 3.5-inch or 12x 3.5-inch base units 16 x 2.5-inch hot-plug PCIe/SAS/SATA SSD or 2x 2.5-inch hot-plug SAS/SATA HDD 8 x 3.5-inch hot-plug SAS/SATA 12 x 3.5-inch hot-plug SAS/SATA 24 x 2.5-inch hot-plug SAS/SATA/PCIe 8 x 2.5-inch hot-plug SAS/SATA 24 x 2.5-inch 16 x 2.5-inch hot-plug SAS/SATA |
| LAN Controller | Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28 |
| Remote Management | Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller) |
| USB ports | 5 x USB 3.0 (2x front, 2x rear, 1x internal) |
| Graphics | 1 x VGA (1x rear) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s) |
| Trusted Platform Module (TPM) | Infineon / TPM 2.0 module, FIPS; TCG compliant (option) |
| Power supply configuration | 1x hot-plug power supply or 2x hot-plug power supply for redundancy |
| Active power (max. configuration) | 2,608.6 W |
| Weight | up to 34.1 kg |
| Rack (W x D x H) | 435 x 813 x 87 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) |
| Server Management | ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Manufacturer warranty period | 3 years |
| Manufacturer warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Support Pack Options | Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner |
