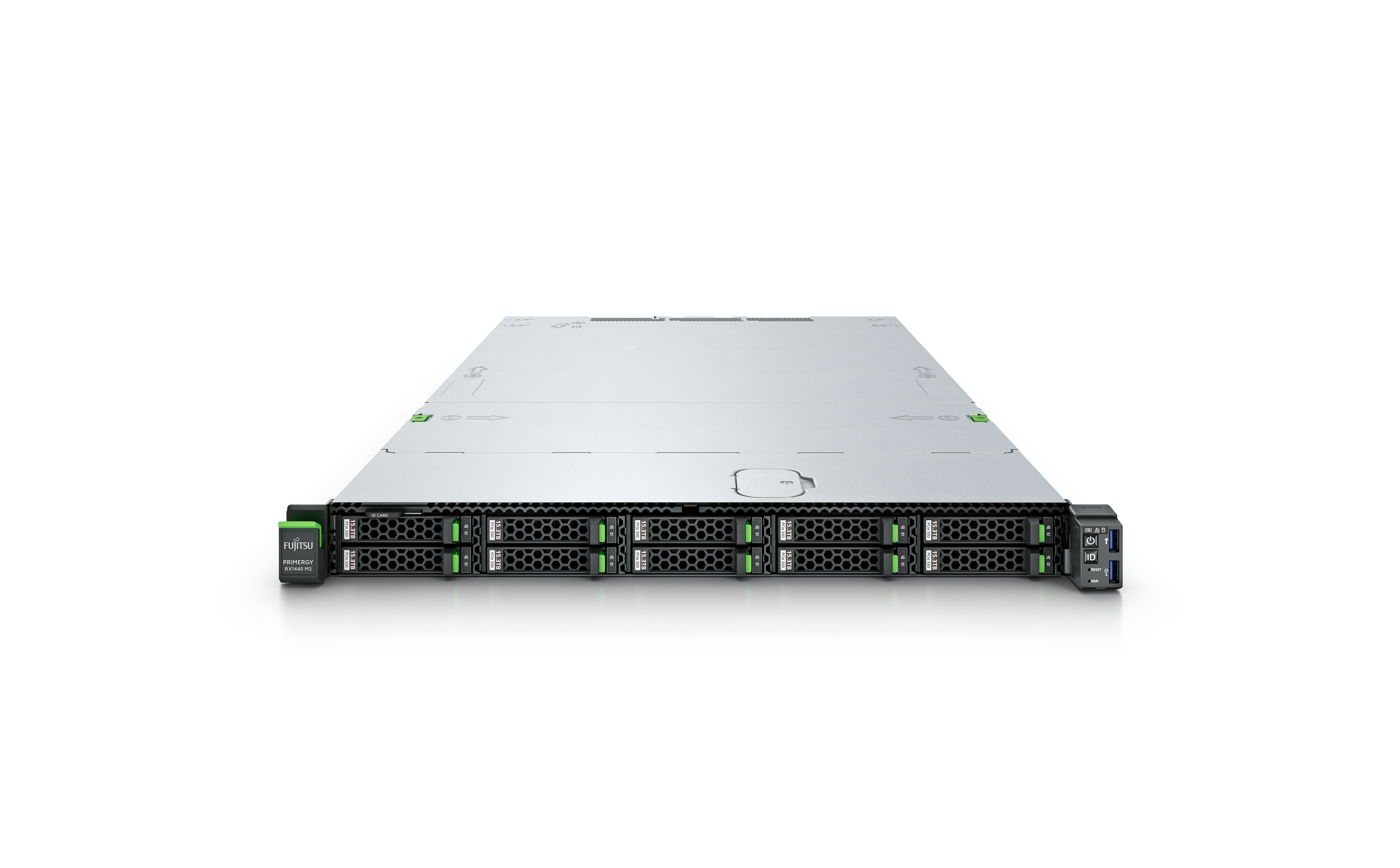

Fujitsu PRIMERGY RX1440 M2 Server
 |
 |
 |
 |
EFFICIENT, HIGH PERFORMANCE COMPUTING |
EXPANDABILITY AND DENSITY |
AGILE INFRASTRUCTURE MANAGEMENT |
SECURITY |
|
The versatile PRIMERGY RX1440 M2 server with AMD EPYC™ 9004 / 9005 processors shortens time to value for IT organizations running demanding workloads. |
Agile and data-driven companies modern platforms that scale easily and are optimized for application performance. The PRIMERGY RX1440 M2 is built upon a mono system architecture but provides high amount of cores, exceptional broad memory configuration options and flexibility to meet performance demands. |
As you scale your infrastructure, scale your profitability with Fujitsu Software Infrastructure Manager (ISM). ISM enables organizations to have centralized control over the entire data center, which includes servers, storage, networking, as well as power and cooling using a single user interface. |
Designed with security in mind, AMD EPYC™ 9004 / 9005 series processors help protect your CPU, applications, and data. With features such as AMD Secure Boot, there is an improved layer of security and firmware advanced persistent threats are mitigated. Platform Firmware Resilience (PFR) is provided by the PRIMERGY RX1440 M2. |
Product Video
Tech Specs
| Chipset | System on Chip (SoC) |
| Mainboard type | D4130 |
| Product Type | Mono Socket Rack Server |
| Processor | AMD EPYC™ 9004 series processor, AMD EPYC™ 9005 series processor |
| Memory | 16 GB - 6 TB, DIMM (DDR5) |
| Memory slots | 24 (24 DIMMs per CPU) |
| Memory protection | Advanced ECC |
| Drives (optional) | DVD supermulti, ultraslim, SATA I |
| Accessible drive bays | 1 x 5.25/9.5mm for DVD-RW/Blu-ray |
| Optional accessible drives | Ultra slim 9.5mm optical drive (optional) All possible options described in relevant system configurator. |
| Storage drive bays | Up to 10: 10x 2.5-inch SATA/SAS/NVMe (PCIe SSD) up to 8x 2.5" (SFF) hot-plug drives (SAS/SATA) up to 4x 3.5" (LFF) hot-plug drives (SAS/SATA) up to 10x 2.5" (SFF) hot-plug drives (SAS/SATA) up to 10x 2.5" (SFF) hot-plug drives (PCIe_NVMe) |
| LAN Controller | Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28 |
| Remote Management | Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller) |
| USB ports | 4 x USB 3.0 (2x rear, 2x front) |
| Graphics | 1 x VGA (1x rear) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s) |
| Trusted Platform Module (TPM) | Infineon / TPM 2.0 module, FIPS; TCG compliant (option) |
| Power supply configuration | 1x hot-plug power supply or 2x hot-plug power supply for redundancy |
| Active power (max. configuration) | 2,608.6 W |
| Weight | up to 18.9 kg |
| Rack (W x D x H) | 483 x 842 x 43 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) |
| Server Management | ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Manufacturer warranty period | 3 years |
| Manufacturer warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Support Pack Options | Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner |
