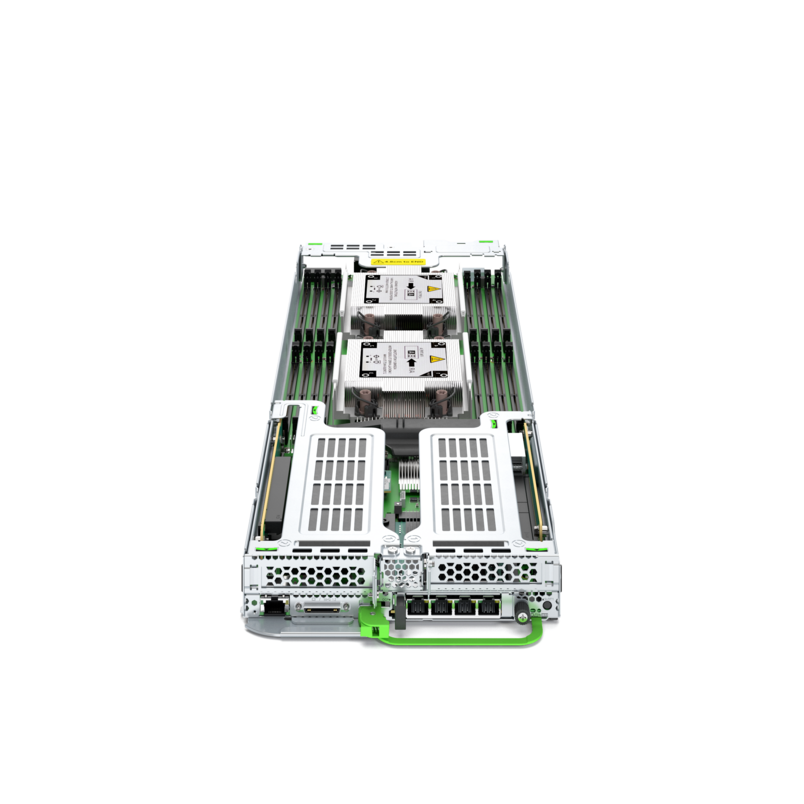

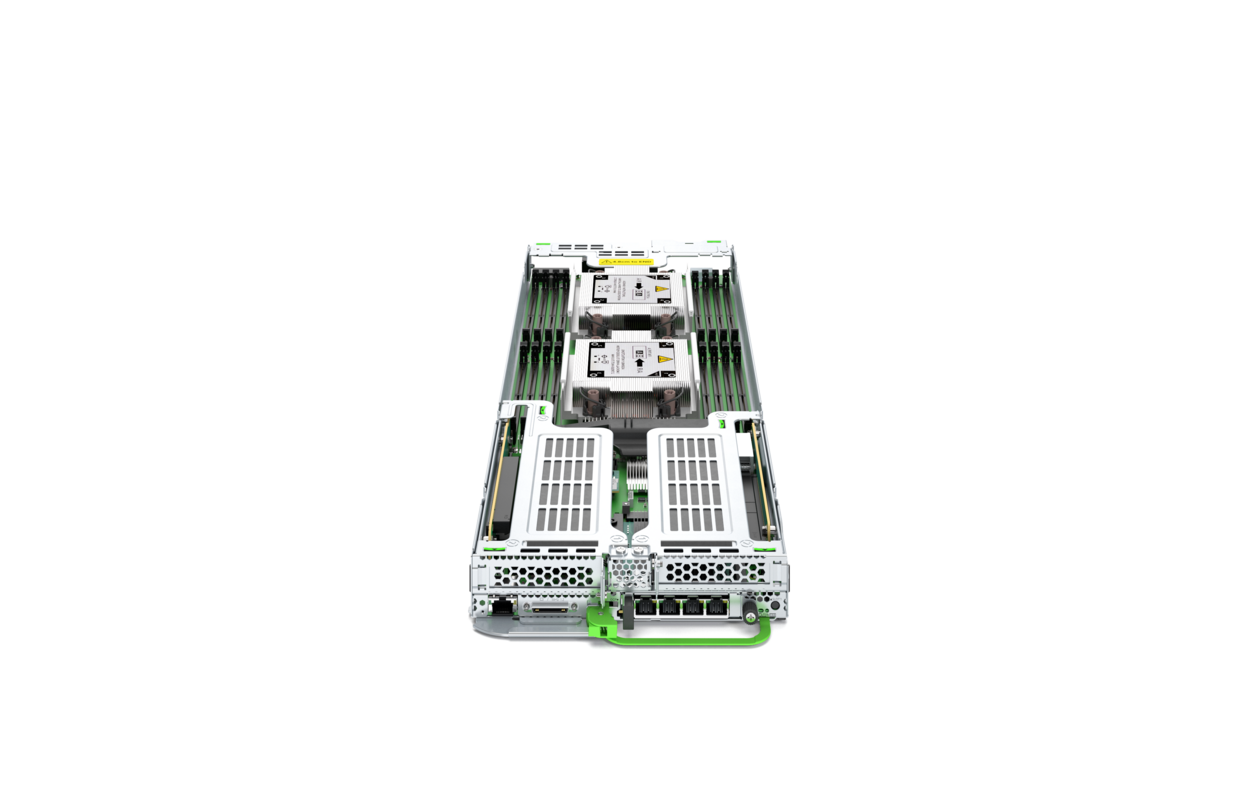

Fujitsu PRIMERGY CX2550 M7 Server
 |
 |
 |
 |
Compact and modular foundation |
Superior performance in a dense form factor |
Increased power at low cost |
Comprehensive expansion options |
|
With PRIMERGY CX400 M7 multi-node server, you get much more server density compared to the standard rack servers. This makes it ideal for service providers, the automotive industry modeling new designs, state and local authorities to provide citizen services or a retailer analyzing consumer trends. In case the requirements change, the CX400 M7 makes it possible to gradually add or remove server nodes as required by your business needs. |
The PRIMERGY CX2550 M7 enables a flexible and fast response to rapidly changing IT demands. It provides the best performance for scale-out workloads such as high performance. |
With up to 4 TB of DDR5 memory, combine performance and versatility to adapt to a variety of applications to meet future needs. The higher bandwidth let the applications run smoothly, without any problems. Save time and money, and focus on business goals. |
Fujitsu offers comprehensive infrastructure management and server management solutions, which is key to efficient data center operations. They provide all the functions for flexible and automated 24x7 IT operations and improve end-user productivity via intelligent and innovative system management solutions. Fujitsu Software Infrastructure Manager enables organizations to drive towards the path of achieving software-defined infrastructure, by automating and simplifying infrastructure operations across compute, storage and networking. |
Tech Specs
| Chipset | Intel® C741 |
| Mainboard type | D 3988 |
| Product Type | Dual Socket 1U Server Node |
| Processor | Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Silver 4xxx processor |
| Memory | 8 GB - 4 TB, DIMM (DDR5) 8 GB - 4096 GB |
| Memory slots | 16 (8 DIMMs per CPU, 8 channels with 1 slot per channel) |
| Memory protection | ECC, Memory Scrubbing, SDDC |
| PCI-Express 4.0 x16 | 2 x low profile (via riser card) |
| Storage drive bays | up to 2x 2.5-inch drive bay per node (in the PRIMERGY CX400 M7 chassis), and 2x M.2 device (in the CX2550 M7 node) |
| LAN Controller | BCM5727 (On board LAN) (on D3893-Axx) 10/100/1000 Mbit/s Ethernet |
| Remote Management | IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller) |
| USB ports | 2 x USB 3.0 (rear) with high density connector |
| Graphics | 1 x VGA (1x rear) with high density connector |
| Weight | 5.1 kg |
| DC Infrastructure Management | Infrastructure Manager (ISM) |
| Server Management | Infrastructure Manager (ISM) |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Warranty period | 3 years |
| Warranty type | Onsite warranty |
| Service Lifecycle | at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
| Service Weblink | https://www.fujitsu.com/emeia/support/ |
| Service Weblink | https://www.fujitsu.com/emeia/support/ |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner |
